Products

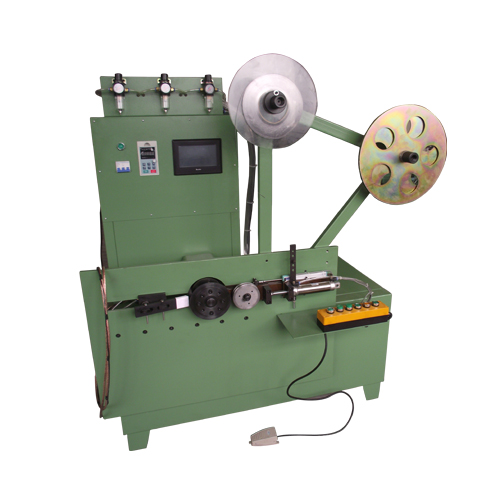

Vertical Semi-Automatic Winding Machine For SWG

Semi-automatic winding machine Suitable for 2" to 18" spiral wound gasket with or without inner ring. PLC control winding size; Digital touch screen interface.


Send Inquiry


Description

Vertical semi-automatic winding machine for SWG Details

STYLE KXT E500B Vertical semi-automatic winding machine for SWG
Producing ability Can produce 2"-18" SWG with or without inner ring;
Standard package including models for 2"-10" 150# SWG with or without inner ring, other size model on request with extra charge
SWG thickness 4.5mm (also suitable for 3.2 and 6.4mm after changing roller parts, V shape winding or W shape winding)
Maximum gasket OD 500mm
Minimum gasket ID 50mm
Gasket OD tolerance ±0.2mm
Spindle speed 0--200rpm
Total power 8kw
Spindle motor power 1.5kw
Welder power 6kw
Power supply voltage 380V/220V for option, 3 phases
Air compressor 0.6-0.8 MPA
Frequency Converter 2.2G
PLC xinjie
Machine measurement 1400*1050*1650mm
Machine net weight 480kg
