Products

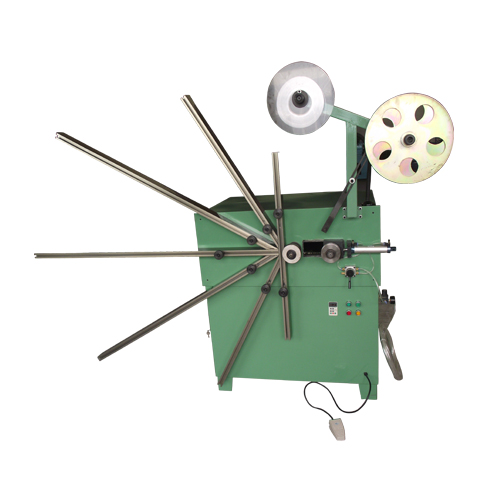

Manual Vertical Big Size Winding Machine For SWG

Very easy to use. Suitable for SWG with or without inner ring, diameter from 200mm to 1600mm;


Send Inquiry


Description
Specification as following:
STYLE KXT E1200 Vertical big size winding machine
Producing ability spiral wound gasket with or without inner ring
SWG thickness 4.5mm (also suitable for 3.2mm,6.4mm and 7.2mm after changing roller parts, V shape winding or W shape winding)
Maximum gasket OD 1600mm
Minimum gasket ID 200mm
Gasket OD tolerance ±0.8mm
Total power 2.2kw
Spindle motor power 1.5kw
Frequency Converter 2.2G
Power supply voltage 380V/220V for option, 3 phases
linear speed 0-800mm/s
Air compressor 0.6-0.8 MPA
Machine measurement 2200*850*1800mm
Machine net weight 220 kg
